Explore the complete spare parts catalog for Yutong Bus ZK6128H. From engine components to body parts, we supply high-quality replacement parts to keep your fleet running smoothly.
PM56-3400-01 Steering mechanism module
| 3 | 3404-00569 | Steering column (Kässbohrer 1*79 teeth) |
| 4 | 3404-00352 | Steering drive shaft (1*79, 1*79, 445) |
| 6 | 3411-00224 | Steering gear assembly, 8098 |
| 7 | 3419-00428 | Steering boom, 2 5/16″ x 48 ZGN738, Φ26.6 |
| 8 | 3422-00740 | Steering tie rod, adjusting sleeve, 800＜L≤900, 52*10 |
| 9 | 3412-00638 | Middle rocker arm |
| 10 | 3422-00630 | Steering tie rod, adjusting sleeve, 1100＜L≤1200, 52*10 |

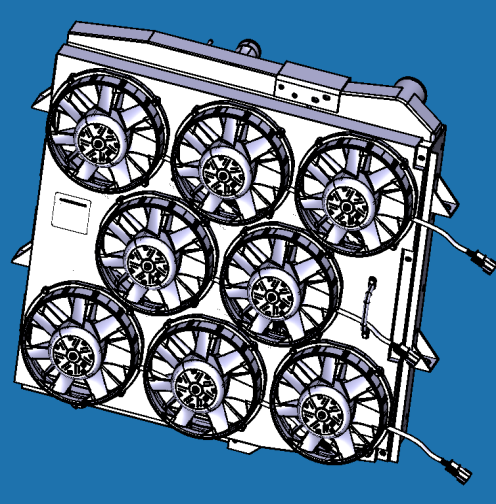

MV009-0005 Intercooling module for heat dissipation (230kW/electronic/left longitudinal/parallel)
| 1314-00614 | Electric fan, φ305, brushless, 500W |
| 1301-04754 | Modular cooling module, aluminum plate fin, ZLQ1, double unit |
| 1314-00325 | Electric fan, φ305, brushless, 500W, 24V |
PM56-1000-02 Engine assembly
1000-14604 Engine assembly, WP10.375E53, diesel, three-phase generator eddy current.
| 1 | 1000-14604-01 | Cylinder block and oil pump assembly | 1 | Item | |
| 2 | 1000-14604-02 | Cylinder head assembly | 1 | Item | |
| 3 | 1000-14604-03 | Crankshaft piston connecting rod assembly | 1 | Item | |
| 4 | 1000-14604-04 | Gear chamber and cover assembly | 1 | Item | |
| 5 | 1000-14604-05 | Fuel filter assembly | 1 | Item | |
| 6 | 1000-14604-06 | Oil cooler assembly | 1 | Item | |
| 7 | 1000-14604-07 | Fuel pump and piping assembly | 1 | Item | |
| 8 | 1000-14604-08 | Flywheel housing and starter mounting assembly | 1 | Item | |
| 8 | 1000-14604-08-01 | Flywheel housing and starter mounting assembly | 1 | Item | |
| 9 | 1000-14604-09 | Intake and exhaust manifolds | 1 | Item | |
| 10 | 1000-14604-10 | turbocharger and connecting pipeline | 1 | Item | |
| 11 | 1000-14604-11 | Valve and valve train assembly | 1 | Item | |
| 12 | 1000-14604-12 | Air compressor and piping assembly | 1 | Item | |
| 13 | 1000-14604-13 | Crankcase ventilation assembly | 1 | Item | |
| 14 | 1000-14604-14 | Engine front end assembly | 1 | Item | |
| 15 | 1000-14604-15 | Water pump thermostat and piping assembly | 1 | Item | |
| 16 | 1000-14604-16 | generator set | 1 | Item | |
| 17 | 1000-14604-17 | Oil pan and oil dipstick set | 1 | Item | |
| 18 | 1000-14604-18 | Engine electronic control module | 1 | Item | |
| 19 | 1000-14604-19 | Post-processing group |

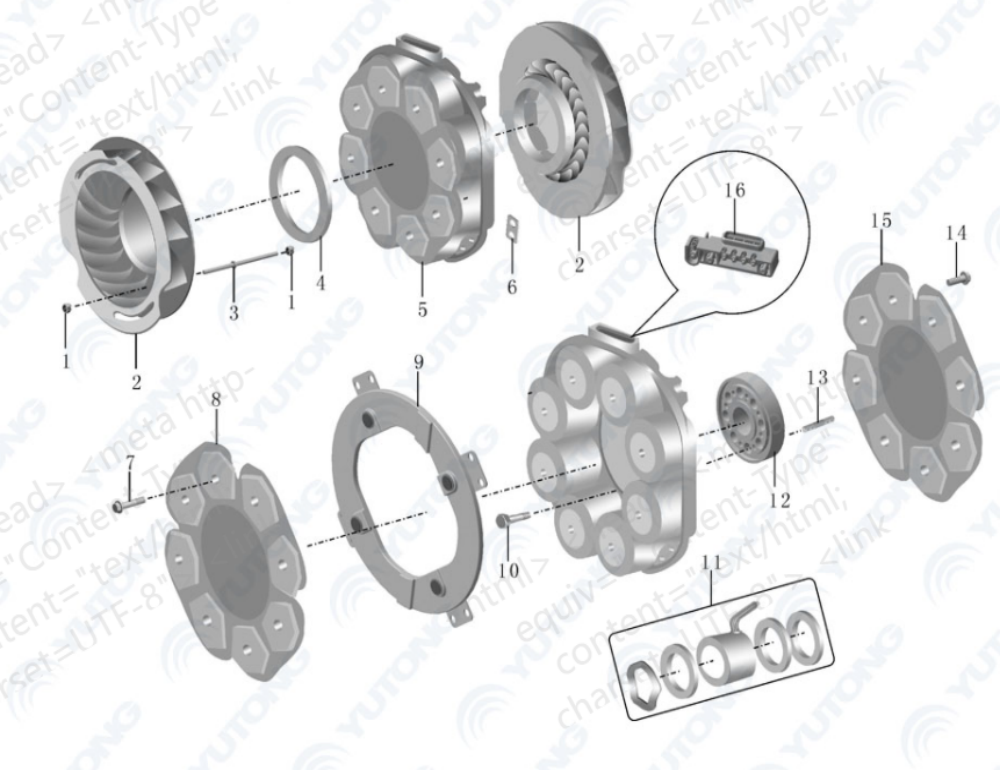

PM56-3524-02 Retarder installation
3524-02127 Retarder, FN72-20, A4 with S6-90 interface series, KV155
| 1 | 9401-04265 | Self-locking nut; TELMA | 8 | |
| 2 | 3524-01559 | Retarder rotor assembly; consisting of two parts | 1 | |
| 3 | 9401-04264 | Double-ended shoulder bolt M12*1.5*124 | 4 | |
| 4 | 3524-00638 | Rotor adjusting shims; FC71-40 | Includes components, see Basic Data Text VB200300, including: Specifications (mm) | 1 |
| 5 | 3524-02303 | Stator assembly | 1 | |
| 5 | 3524-03083 | Retarder stator assembly | 1 | |
| 6 | 3524-00637 | Stator adjusting shims; FC71-40; can be replaced by 3524-02829 | The components, as shown in the basic data text VB200330, include: Specifications (mm). | 1 |
| 7 | 3524-00874 | Pole shoe bolt (outer side); replaced by 3524-06822 | 8 | |
| 8 | 3524-00798 | Extreme Boot Iron Plate | Near the end of the drive shaft | 1 |
| 8 | 3524-03084 | Extreme Boot Iron Plate | Drive shaft end | 1 |
| 9 | 3524-00454 | Retarder bracket; F191 | Fixed stator and gearbox connection | 1 |
| 10 | 2201-00302 | Drive shaft bolts; M12*1.25 | Connecting to a retarder | 4 |
| 11 | 3524-00856 | Retarder coil assembly; 92.5*133.6*92 | 8 | |
| 11 | 3524-03086 | Retarder coil assembly; 99*135*91.8 | 8 | |
| 11 | 3524-04919 | Retarder coil assembly; 99.5*135*91.8 | 8 | |
| 12 | 3524-03187 | retarder flange | 1 | |
| 13 | 9401-08493 | Bolt; M14*1.5 | 6 | |
| 14 | 3524-00875 | Pole shoe bolt (inner side) | 8 | |
| 15 | 3524-00907 | Extreme Boot Iron Plate | Connected to the gearbox end | 1 |
| 15 | 3524-03085 | Extreme Boot Iron Plate | gearbox end | 1 |
| 16 | 3524-00088 | Retarder terminal block VD408074 TELMA |

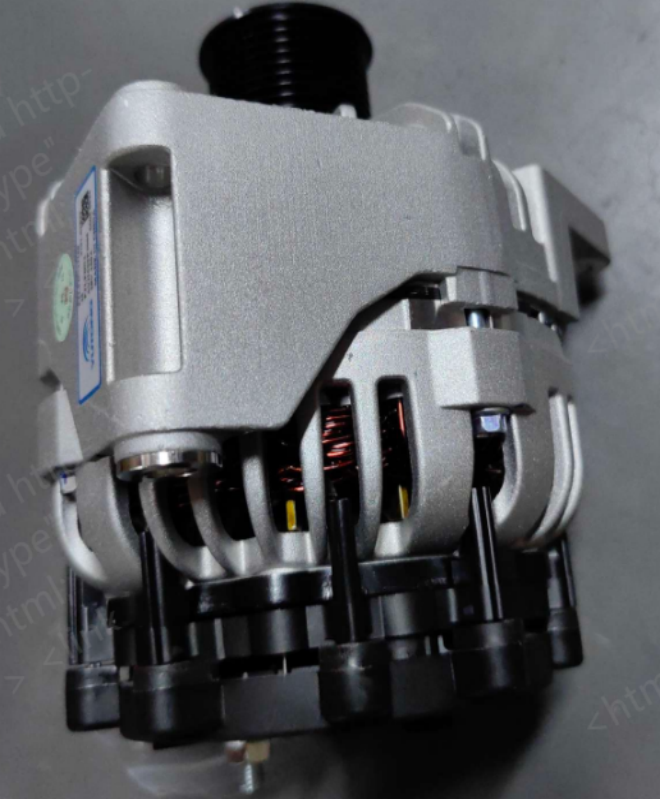

PM56-3701-02 Installation of Weichai WP10 three-parallel 150A generator
| 3701-01515 | Generator, AVi168S3002, 150A, 10PK, φ54, available |
| 3701-02577 | Generator AVI168SP3005 28V 150A 10PK φ54 |

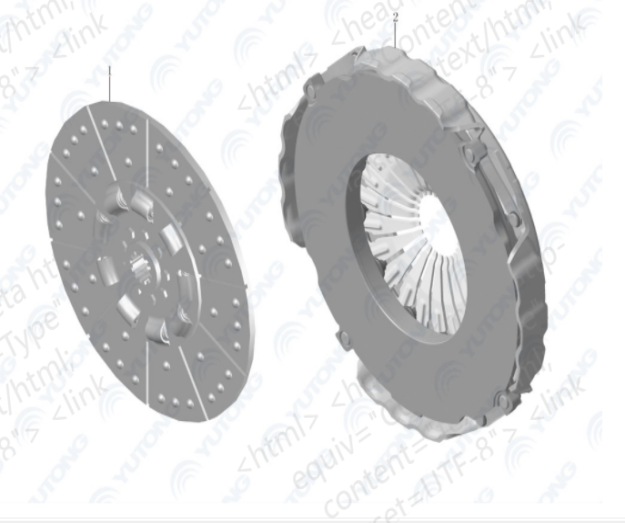

PM56-1601-02 Clutch assembly installation
| 1 | 1601-01121 | Clutch driven plate;φ430; |
| 2 | 1601-01120 | Clutch cover and pressure plate |

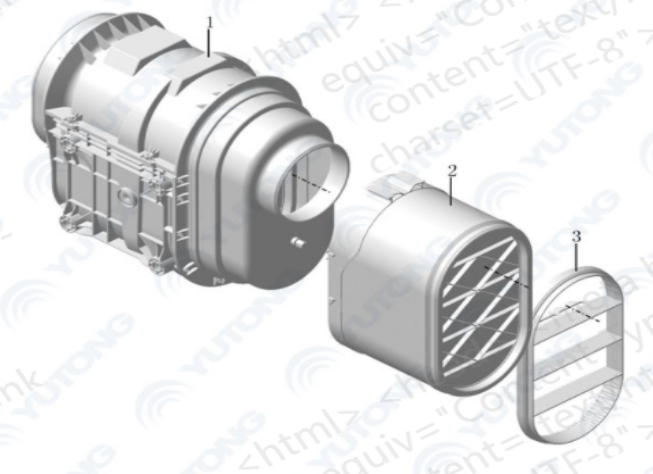

PM56-1109-02 Air filter and its piping installation diagram
| 1 | 1109-07203 | Air filter housing assembly |
| 2 | 1109-07206 | Air filter main filter element |
| 3 | 1109-07207 | Safety Chip Assembly |

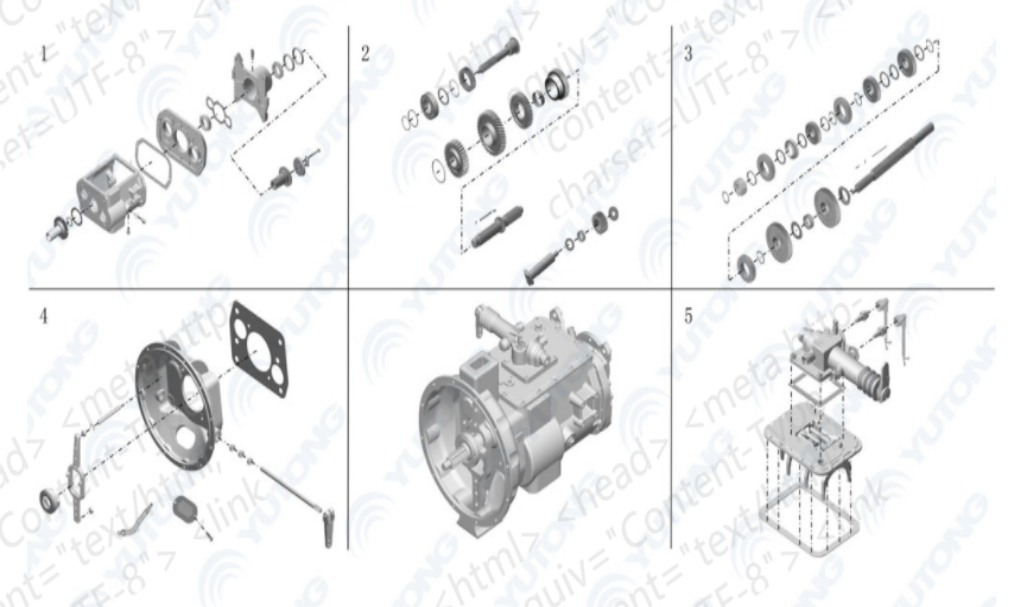

PM56-1701-01 Transmission assembly
1701-13272 Transmission assembly, 6DSX180TC, 6.33-0.75, aluminum, T150
| 1 | 1701-13272-01 | Transmission housing and peripheral components assembly |
| 2 | 1701-13272-02 | Primary shaft, intermediate shaft, and reverse gear shaft assembly |
| 3 | 1701-13272-03 | Two-axis assembly |
| 4 | 1701-13272-04 | Clutch housing and accessory assembly |
| 5 | 1701-13272-05 | Top cover and top cover assembly |

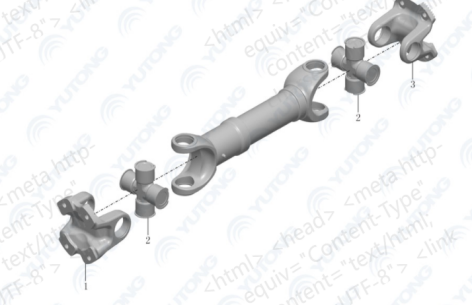

PM56-2201-02 Drive shaft assembly
| 2201-04361 | Drive shaft, B, 520, 65 | |
| 1 | 2201-03480 | Drive shaft flange; end face teeth; 4-Φ13 |
| 2 | 2201-01536 | Drive shaft cross shaft (T-type grease fitting) |
| 3 | 2201-03478 | Drive shaft flange; end face teeth; 4-Φ15 |

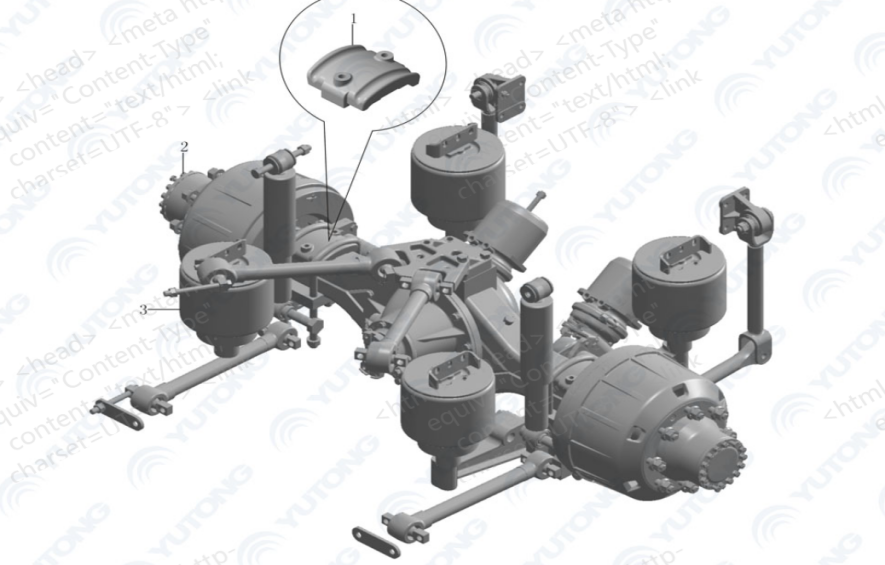

29G3-04059 SR12M-09 rear suspension, custom-made 13t, 4.10, Longzhong drum, BU
| 1 | 2914-00237 | Rear axle cover plate, left, CA=4°, B=135 | 1 | |
| 1 | 2914-00238 | Rear axle cover plate, right, CA=4°, B=135 | 1 | |
| 2 | 2400-08159 | Rear axle, 13T, air suspension, 4.10/BU/with ABS | Longzhong adjusting arm + without Φ410*220 marking | 1 |
| 3 | 2935-01949 | Rear suspension assembly, SR12M-09, L=970, B=1660 (overseas) | Modify push-down angle |

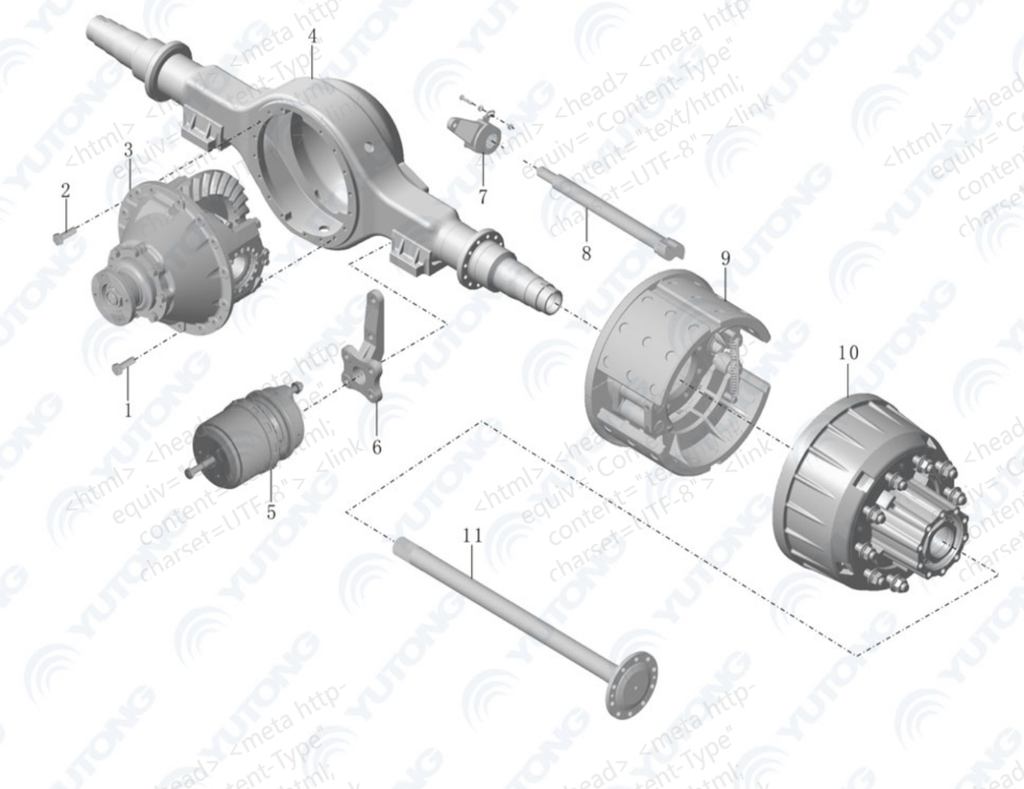

2400-08159 Rear axle, 13T, air suspension, 4.10/BU/with ABS
| 1 | Q151B1650TD3SH | Hex head bolts – fine thread M16*1.5*50 | Grade 10.9; Dacromet; Pre-coated adhesive | 8 |
| 2 | Q151B1665TD3SH | Hex head bolts, M16*1.5*65 | M16*1.5*65-10.9; Pre-coated adhesive | 6 |
| 3 | 2402-04209 | Main reduction gear assembly, R460, 4.1, end face gears/precision ground. | Short principal cone | 1 |
| 4 | 2401-05986 | Rear axle housing assembly, 13t, air intake, 970/4.5°/306/99.5 | Modify 4.5 degrees based on 2401-02567. | 1 |
| 5 | 3519-00665 | Rear air chamber (30/24, M16*1.5/drum) | 1 | |
| 5 | 3519-00666 | Rear air chamber (30/24, M16*1.5/drum) | 1 | |
| 6 | 3502-00413 | Rear chamber support (13T) | 1 | |
| 6 | 3502-00414 | Rear chamber support (13T) | 1 | |
| 7 | 3554-00489 | Automatic adjusting arm, 145*56, 14, 163 | Automatic adjusting arm, 145*56, 14, 163 @ Longzhong | 1 |
| 7 | 3554-00490 | Automatic adjusting arm, 145*56, 14, 163 | 1 | |
| 8 | 3557-00259 | Camshaft (φ44*429/14 teeth/φ24/bolt) | 1 | |
| 8 | 3557-00260 | Camshaft (φ44*429/14 teeth/φ24/bolt) | 1 | |
| 9 | 3502-00581 | Drum brake, rear, Φ410*220 | See the basic data text for a new drum brake based on 3502-00581 (only the friction pad manufacturer is changed). | 2 |
| 9 | 3501-03149 | Drum brake, rear, Φ410*220 | Remove the Φ410*220 marking. | 2 |
| 10 | 3503-00230 | Rear wheel assembly (13T/with ABS/drum type/BU) | 2 | |
| 11 | 2403-03046 | Half shaft, φ55, 1055, 46 teeth | Based on 2403-01818, the length was changed. | 1 |
| 11 | 2403-03045 | Half shaft, φ55, 963, 46 teeth | Modify the length and flange based on 2403-01817. | 1 |
| 12 | 9401-02677 | Car wheel nuts, M22*1.5-10, SPL-1-043(33) |

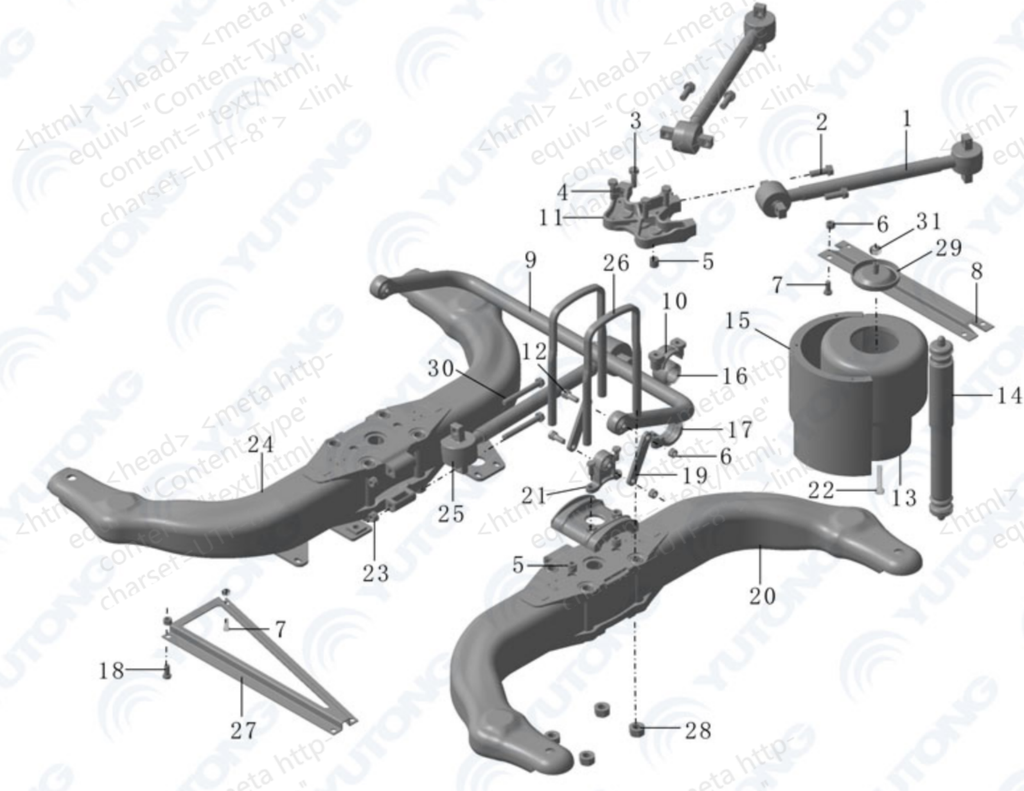

2935-01949 Rear suspension assembly, SR12M-09, L=970, B=1660 (overseas)
| 1 | 2919-00615 | Thrust rod assembly, L=587, S1=115/S2=130, 48*5 | ZF | 2 |
| 1 | 2919-00987 | Thrust rod assembly, L=587, S1=115/S2=130, 48*5 | Zhuzhou low stiffness, replace 2919-00615 (ZF) | 2 |
| 2 | 9401-04828 | Bolt, M18*2*55*55, NL, TD3 | Level 10.9; Dacromet; Yuhuan Ring Road Vehicles | 4 |
| 3 | 9401-04835 | Bolt, M18*2*95*50, NL, TD3 | Level 10.9; Dacromet; Yuhuan Ring Road Vehicles | 2 |
| 4 | 9401-04831 | Bolt, M18*2*70*50, NL, TD3 | Level 10.9; Dacromet; Yuhuan Ring Road Vehicles | 2 |
| 5 | 2982-02184 | Locating pin, D=28, L=26 | 6 | |
| 6 | 9401-00365 | Spiral flange nuts; M16-10; SPL | MAN/L1981410002 | 0.12 |
| 7 | 9401-08964 | Bolt, M16*2*35*35, NL, TD3 | 11 | |
| 8 | 2931-01030 | Bracket front connecting plate, 12t | Corrosion protection time changed to 240 hours | 1 |
| 9 | 2916-00348 | Lateral stabilizer bar assembly, L=1020, B=360, D=50 | 1 | |
| 10 | 2906-00564 | stabilizer bar bearing cap, L=51, d=15, S=92 | ZG270-500 | 2 |
| 11 | 2919-00616 | Thrust rod support, A=54°, H=52, M18*2/S=115 | 1 | |
| 12 | 9401-08316 | Bolt, M16*2*90*40, NL, TD3 | Level 10.9 | 4 |
| 13 | 2931-01052 | Airbag assembly, 876N6, D=335, H=195 | 2931-01051+2931-00963 | 4 |
| 14 | 2915-00699 | Shock absorber assembly, GG, N45, t=421～661 | @SACHS:481700015084PCV | 4 |
| 15 | 2931-01049 | Airbag shield assembly (I) | 2 | |
| 15 | 2931-01050 | Airbag shield assembly (II) | ||
| 16 | 2935-00215 | Bushing, stabilizer bar, D=74.5*d=49, L=50.2 | The basic data text 2935-00216+2935-00215 and 2916-00142+2906-00255 are interchangeable. | 2 |
| 17 | 2906-00970 | stabilizer bar bearing cap, L=51, d=15, S=92 | Aluminum alloy (2A12) | 2 |
| 18 | 9401-08657 | Bolt, M16*2*45*45, NL, TD3 | 1 | |
| 19 | 2916-00482 | Lateral stabilizer bar hanger, left, L=220, bushing | Φ16; L=220; T=12 | 4 |
| 19 | 2916-03375 | Lateral stabilizer bar hanger, left, L=220, bushing | Based on the basic data text 2916-00482, the thickness has been changed from 12mm to 10mm. | 4 |
| 20 | 2931-01033 | Bracket assembly, left, L=1520, B=345 | 1 | |
| 21 | 2916-00155 | Lateral stabilizer bar hanger assembly | 2 | |
| 22 | 9401-05468 | Bolt, M18*2*140*50, NL, TD3 | Level 10.9; Dacromet; Yuhuan Ring Road Vehicles | 4 |
| 23 | 9401-04732 | Spiral flange nuts, M18*2 | 4 | |
| 24 | 2931-01034 | Bracket assembly, right, L=1520, B=345 | 1 | |
| 25 | 2919-00604 | Thrust rod assembly, L=655, S1=130/S2=130, 48*5 | 2 | |
| 25 | 2919-00811 | Thrust rod assembly, L=655, S1=130/S2=130, 48*5 | @TMT, 2919-00604 Low Stiffness Products | 2 |
| 26 | 2981-00301 | U-bolts, M27*2, B=215, L=427 | 4 | |
| 27 | 2931-01029 | Rear connecting plate of bracket, 12t | Corrosion protection time changed to 240 hours | 1 |
| 28 | 9401-05682 | Nut, Spiro flange nut, M27*2*27, grade 10 | @Shanghai Special Offer; M27*2 | 8 |
| 29 | 2931-00182 | Limiting block, H=52, φ152.5, M10*1 | upper air intake | 4 |
| 30 | Q151C18150TD3 | Hex head bolts – fine thread; M18*2*150 | 4 | |
| 31 | 9401-06020 | Hexagonal thin nuts – fine thread, M18*2 |

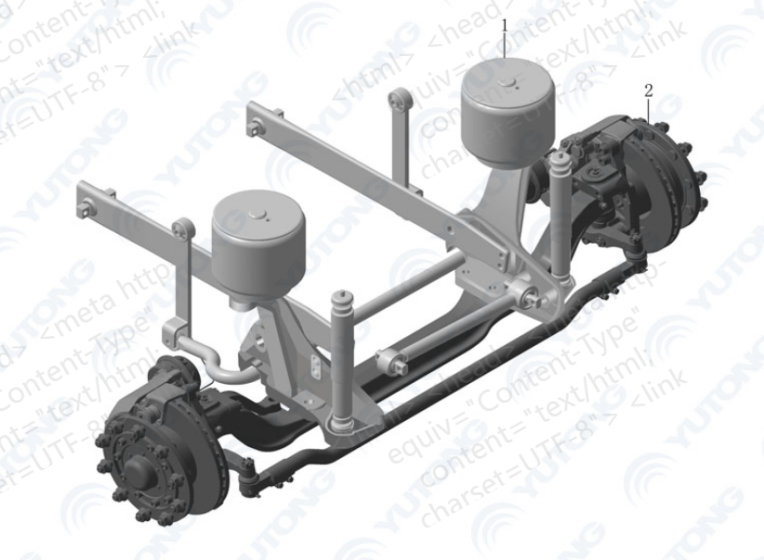

29G1-01880 SF65E-18 front suspension, custom-made 7.5t engine, Knorr brake discs, BU
| 1 | 2930-01587 | Front suspension assembly, SF65E-18, L=890, B=1310 | Based on the basic data text 2930-01402, replace the boom with 2906-00440. |
| 2 | 3000-03350 | Front axle assembly, 7.5T, disc brakes/BU, with ABS/left-hand drive |

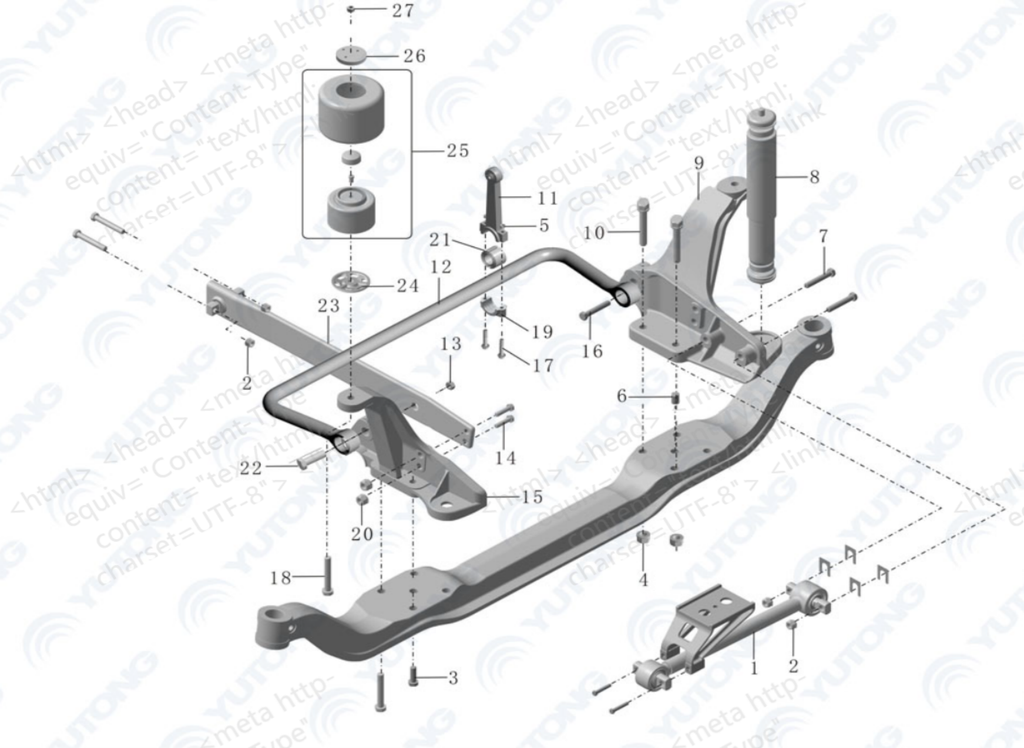

2930-01587 Front suspension assembly, SF65E-18, L=890, B=1310
| 1 | 2909-00027 | Thrust rod assembly, L=777, S1=115/S2=115, 48*5 | @TMT, same as 2901-00388, SF65 | 1 |
| 2 | 9401-00365 | Spiral flange nuts; M16-10; SPL | MAN/L1981410002 | 0.01 |
| 2 | 9401-00365 | Spiral flange nuts; M16-10; SPL | MAN/L1981410002 | 0.02 |
| 3 | 9401-05053 | Bolt, M20*2*55*55, NL, TD3 | Level 10.9; Dacromet; Yuhuan Ring Road Vehicles | 4 |
| 4 | 9401-05576 | Nut, Spiro flange nut, M20*2*20, grade 10 | 4 | |
| 5 | 9401-00364 | Spiral flange nuts; M14-10; SPL | 0.04 | |
| 6 | 2901-00060 | Axle positioning pin, Φ20.5, 28 | Φ20.5*28 | 2 |
| 7 | 9401-08322 | Bolt, M16*2*110*40, NL, TD3 | Level 10.9 | 1 |
| 8 | 2905-01156 | Shock absorber assembly, GG, N45, t=380～590 | PCV vibration damper | 2 |
| 9 | 2931-01200 | Airbag underarm, right, CA=5°, H=358 | Modifications were made in accordance with 2931-00532. | 1 |
| 10 | 9401-05056 | Bolt, M20*2*80*60, NL, TD3 | Level 10.9; Dacromet; | 4 |
| 11 | 2906-00440 | stabilizer bar assembly, L=250 | Purchased from Jingyida | 2 |
| 11 | 2906-00925 | Lateral stabilizer bar assembly, left, L=250, bushing | 2 | |
| 12 | 2906-01078 | Lateral stabilizer bar assembly, L=975, B=350, D=50 | 1 | |
| 13 | 9401-03198 | Spiral flange nuts, M24*2 | Spiral flange nuts; M24*2-10; SPL | 2 |
| 14 | 9401-04832 | Bolt, M18*2*75*50, NL, TD3 | Level 10.9; Dacromet | 4 |
| 15 | 2931-01199 | Airbag underarm, left, CA=5°, H=358 | Modifications were made in accordance with 2931-00531. | 1 |
| 16 | 9401-08318 | Bolt, M16*2*100*40, NL, TD3 | Level 10.9 | 2 |
| 17 | Q150B14105TD3 | Hex head bolts, M14*105, Dacromet | Level 10.9; Dacromet | 4 |
| 18 | Q151C1895TD3 | Hex head bolts – fine thread; M18*2*95 | 2 | |
| 19 | 2906-00944 | stabilizer bar bearing cap, L=51, d=15, S=92 | 45# | 2 |
| 20 | 9401-04732 | Spiral flange nuts, M18*2 | 4 | |
| 21 | 2935-00215 | Bushing, stabilizer bar, D=74.5*d=49, L=50.2 | The basic data text 2935-00216+2935-00215 and 2916-00142+2906-00255 are interchangeable. | 2 |
| 22 | 2982-00143 | Pin, guide arm, M24*2, L=73 | 2 | |
| 23 | 2902-01043 | Guide arm assembly, left/right, vertical, L=761 | 2 | |
| 24 | 2931-01448 | Airbag disc, D=130, d=50, L=45 | Modified steel parts based on 2931-00299 | 2 |
| 24 | 2931-01561 | Airbag disc, D=90, d=50, L=45 | Modified ductile iron parts based on 2931-01448 | 2 |
| 24 | 2931-01879 | Airbag disc, D=130, d=50, L=45 | Modified ductile iron parts based on 2931-01448 | 2 |
| 25 | 2931-01101 | Airbag assembly, 661N6, D=310, H=115 | 2 | |
| 26 | 2931-00182 | Limiting block, H=52, φ152.5, M10*1 | upper air intake | 2 |
| 27 | 9401-06020 | Hexagonal thin nuts – fine thread, M18*2 |

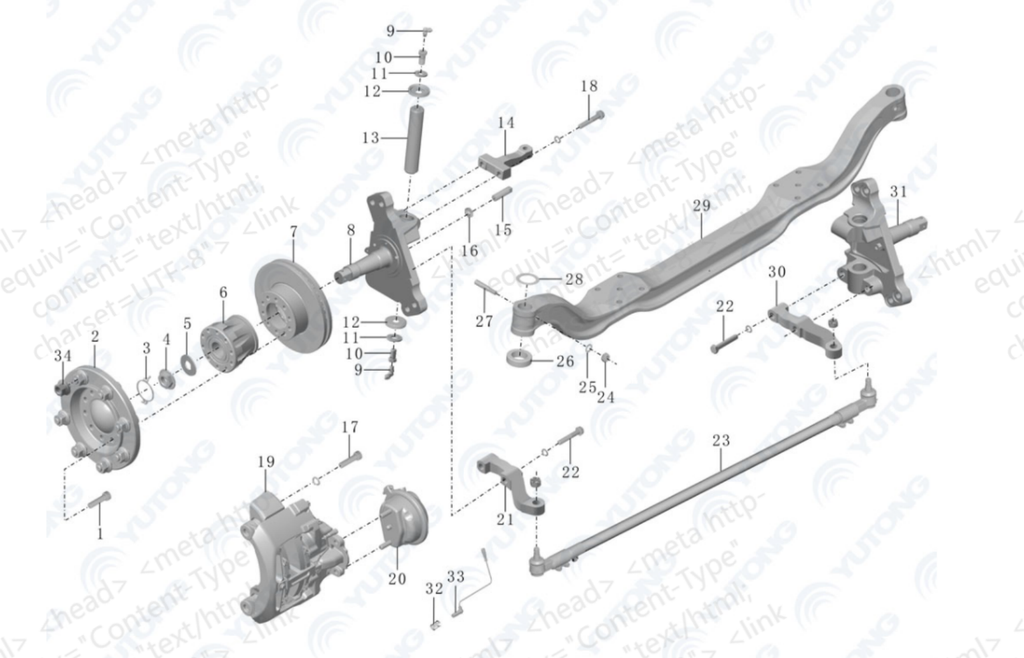

3000-03350 Front axle assembly, 7.5T, disc brakes/BU, with ABS/left-hand drive
| 1 | 9401-07264 | Bolt, hexagonal head flange bolt, M18*1.5*75, grade 10.9 | 24 | |
| 2 | 3503-00083 | Front wheel assembly (7.5T/ABS/22.5 disc) | Remove wheel nuts | 2 |
| 3 | 3001-01675 | Snap ring (φ70*φ82) | After improvement, independent suspension uses | 2 |
| 4 | 3001-01674 | Locking nuts, M45*2, grade 10 | After improvement, independent suspension uses | 2 |
| 5 | 3001-01673 | Friction-reducing baffle (Φ45.5*Φ107*6) | After improvement, independent suspension uses | 2 |
| 6 | 3001-03059 | Bearing unit with hub assembly (7.5t/φ70/φ70/130) | 3001-01711 (Self-made, internal chassis pressing) | 2 |
| 7 | 3501-01106 | Brake disc, front, Φ432*45*113.5, Φ168 | 3D digital model input | 2 |
| 8 | 3001-02578 | Right steering knuckle assembly (7.5T/disc type/φ58/φ70/φ70) | 7.5T large-angle front axle | 1 |
| 9 | Q701B45EC | Curved neck grease fitting, α=45°, rainbow galvanized | Color-coated zinc | 4 |
| 10 | 3001-00399 | Bolt, M16*1.5*30, grade 8.8 | 4 | |
| 11 | 3001-02070 | Flat washers (Φ16*Φ35*4) | 4 | |
| 11 | 3001-07341 | Kingpin flat washers, 4, Φ16/Φ40 | The basic data text matches plug caps 3001-00428 and 3001-01437, indicating a new flat washer. | 4 |
| 11 | 3001-07602 | Kingpin flat washers, 4, Φ16/Φ45 | A new flat washer is manufactured to match the 3001-01437 plug cap. | 4 |
| 12 | 3001-01437 | Master pin plug (φ16*φ59*7.5) | 7.5T front axle | 4 |
| 13 | 3001-02574 | Main pin (φ50*241) | 7.5T large-angle front axle | 2 |
| 14 | 3002-00188 | Steering knuckle arm, left, 7.5t/273.5, 10 units forward/large end facing down. | 7.5T large-angle front axle | 1 |
| 15 | 3001-01893 | Steering limit bolt, M16*1.5*47, grade 10.9 | Used for ConMet wheel-side front axle | 2 |
| 16 | 3001-01050 | Nut, M16*1.5*12, Grade 10, Hexagonal | Level 10 | 2 |
| 17 | Q1812060TD3 | Hexagonal flange face bearing toothed bolts, M20*1.5*60, 10.9 | 12 | |
| 17 | 9401-08498 | Bolts, hex head bolts, M20*1.5*60, grade 10.9 | Improve special features | 12 |
| 18 | 9401-07307SH | Bolts, hexagonal flange bolts, M22*1.5*85, grade 10.9 | Pre-applied adhesive | 2 |
| 19 | 3501-01394 | Disc brake, 22.5″, 55″, 6 holes | Digital Model Supplement | 1 |
| 19 | 3501-01395 | Disc brake, 22.5″, 55″, 6 holes | Digital Model Supplement | 1 |
| 20 | 3519-00794 | Disc-type air chamber, front, 24″/M16*1.5, disc | Weight maintenance | 1 |
| 20 | 3519-00795 | Disc-type air chamber, front, 24″/M16*1.5, disc | Weight maintenance | 1 |
| 21 | 3001-02575 | Tie bar arm, left, 7.5T, 190/large end down | 7.5T large-angle front axle | 1 |
| 22 | 3501-01497SH | Bolt, M22*1.5*105, 10.9, hexagonal. | 4 | |
| 23 | 3003-03286 | Tie rod assembly (φ50*6.7/1770/40) | 7.5T large turning radius, replacing 3003-00740 | 1 |
| 24 | 9401-03194 | Spiral flange nut, M14*1.5 | Spiral flange nut; M14*1.5-10; SPL | 2 |
| 25 | Q40114D3 | Flat washer, d=14, Dacromet | Dacromet | 2 |
| 26 | 9401-05807 | Thrust bearing, 50*83*22 | 917/50.1ZSV/YA | 2 |
| 27 | 3001-00418 | Wedge-shaped locking pin (φ16*103/M14*1.5) | Same as 3001-00102 | 2 |
| 28 | 3001-05660 | Steering knuckle adjusting shim pack (φ50/φ52/2.0) | See basic data text matching φ50/φ52 master pin specifications, 2.0 thickness series steering adjustment shim package | 1 |
| 29 | 3001-02573 | I-beam, 7.5t, 1820, 890/85+15 | 1 | |
| 30 | 3001-02576 | Tie rod arm, right, 7.5t, 190° / large end down | 7.5T large-angle front axle | 1 |
| 31 | 3001-02577 | Left steering knuckle assembly (7.5T/disc type/φ58/φ70/φ70) | 7.5T large-angle front axle | 1 |
| 32 | 3550-00183 | Elastic clamping sleeve | Weight maintenance | 2 |
| 33 | 3550-00182 | ABS sensor, elbow, 2000 | 2 | |
| 34 | 9601-01351 | Car wheel nuts, M22*1.5-10, SPL-1-017(26) |

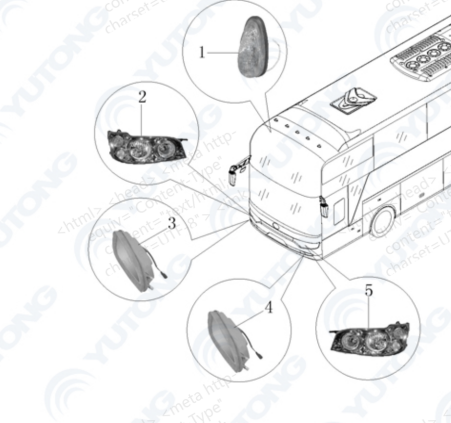

A255-4121-01 Front lighting installation
| 1 | 4114-00211 | Front parking lights, WZ985, teardrop shape, LED, adhesive. |
| 2 | 4121-00249 | Combination headlights, HC585X393-01-D24, right side, left-hand drive |
| 3 | 4116-00244 | Front fog light, WD1205, universal, 24V |
| 5 | 4121-00248 | Combination headlights, HC585X393-01-D24, left side, left-hand drive. |
| 3716-00245A | Side marker light, WG-3.110, LED 3M adhesive, rectangular 24V | |
| 4111-00300 | Side turn signal, ZX527, LED teardrop shape, 3M adhesive 24V |

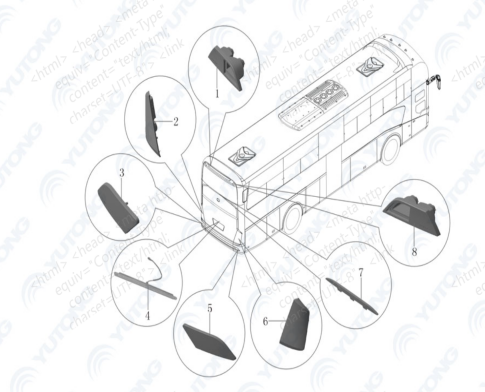

A255-4133-01 Rear lighting installation
| 1 | 4114-00243 | Rear parking lights, WZ1101, red, LED |
| 2 | 4133-00257 | Combination taillights, HA1575, left side |
| 3 | 4116-00215 | Rear fog light, WD1785, left side, with reflector |
| 4 | 4108-00045 | License plate light, WG-4, LED |
| 5 | 4116-00216 | Rear fog light, WD1786, right side, with reflector |
| 6 | 4133-00258 | Combination taillights, HA1576, right side |
| 4111-00119 | Rear turn signal, ZX493-03, LED, round, 24V | |
| 7 | 4134-00105 | High-mounted brake light, ZD705*1, 24V |

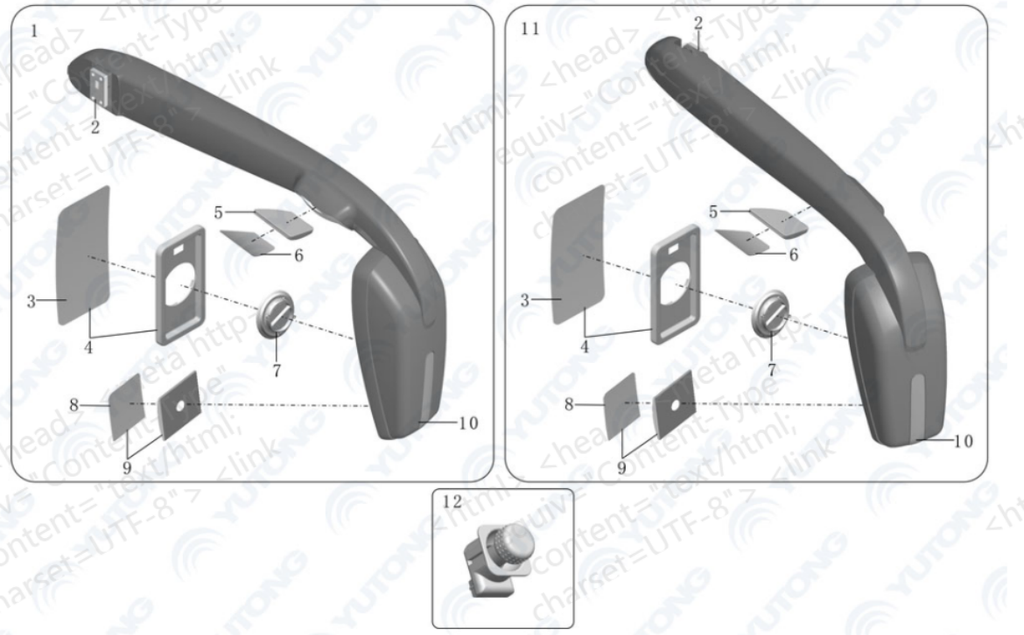

MV077-0001 Exterior rearview mirror module (left-hand drive/rabbit ear/electric adjustment)
| 1 | 8202-07491 | Rearview mirror assembly – left | 1 |
| 2 | 8202-02772 | Insert | 2 |
| 3 | 8202-07497 | 12-meter car mirror | 2 |
| 4 | 8202-07493 | KW224 Main Lens Mount Assembly | 2 |
| 4 | 8202-07569 | Main lens holder assembly; Left; 205*360 | 2 |
| 5 | 8202-05056 | Forward mirror support plate | 2 |
| 6 | 8202-07496 | Yutong 10-meter new telescope arm lower view mirror lens; 80*158 | 2 |
| 7 | 8202-02382 | Second-generation electric large movement | 2 |
| 7 | 8202-06412 | Electric adjustment mechanism; waterproof insert (right) | 2 |
| 8 | 8202-07494 | 12-meter vehicle downward sight lens; 176*116 | 2 |
| 9 | 8202-07495 | KW224 Blind Spot Lens Mount Assembly; 180*118 | 2 |
| 10 | 8202-06975 | 12-meter left-hand drive lens decorative panel (left) | 1 |
| 10 | 8202-06980 | 12-meter left-hand drive lens decorative panel right | 1 |
| 11 | 8202-07492 | Rearview mirror assembly – right | 1 |
| 12 | 8202-02785 | Electric rotary switch | 1 |
B401-5302-01 Front body skin assembly
| 5302-08573 | Front section of the roof skin (B401, single windshield) |
| 5302-08574 | Left side skin of the front windshield (B401, single windshield) |
| 5302-08575 | Right side skin of the front windshield (B401, single windshield) |
| 5302-08576 | Lower side skin of the windshield (B401) |
| 5302-09272 | Front fascia trim, B401 front fog lights |
| 5302-09272 | Front fascia trim, B401 front fog lights |
| 5302-08581 | Front left lower skin, B401, SMC |
| 5302-08582 | Front right lower skin, B401, SMC |
| 6605-00496 | Rubber strip, emergency door sealing strip, ZK6601D5Y, black |
| 5302-10440 | Laminated windshield glass (B413, white, no lane departure warning radar) |
B401-5304-01 Front flip door assembly
| 5304-00279 | Front flip door, B401, none |
| 5302-13058 | Front fascia trim, ZK6128H, 2550, DCPD Yutong assembly |
| 2803-03482 | Front bumper trim, upper edge of B401 front bumper |

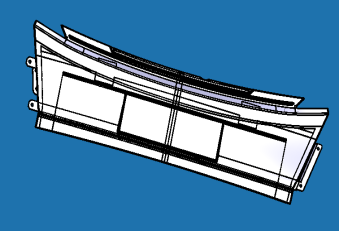

B401-2803-01 Front bumper installation
| 2803-03488 | Front bumper assembly, B401, SMC |

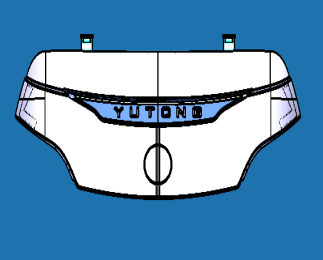

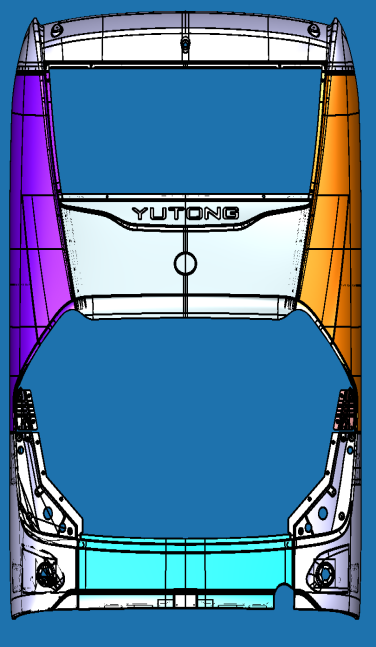

B399-5620-02 Rear body skin assembly, B399, right-side without radar
| 2804-04087 | Rear bumper assembly, ZK6128H (Asia Pacific version), without radar holes. |
| 5602-10669 | Rear bumper trim, ZK6128H, 2550, DCPD Yutong assembly |
| 5602-10677 | Rear bumper trim, ZK6128H, 2550, DCPD (without lettering) |
| 5602-07429 | Rear fascia skin, top brim |
| 5602-08714 | Rear body skin, no radar hole on the lower left (SMC) |
| 5602-08715 | Rear body skin, no radar hole on the lower right (SMC) |
| 5604-04542 | Non-sealed rear hatch, B401, box lock, left grille CY |
| 5602-07430 | Rear body skin, upper left corner skin |
| 5602-07432 | Rear body skin, middle body skin |
| 5602-07431 | Rear body skin, upper right corner skin |
